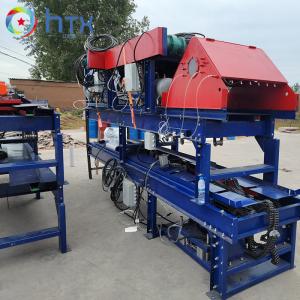

Automatic Cement Stone Plastic Paver Factory Concrete Stone Production Line Wet Cast Equipment
Product Description
Pavement artificial stones making feeding machine main parts are cement silo, batching machine, auto wet concrete dosing part, auto concrete fixed mixer, auto unloading and stacking machine, auto spary machine(used for add color for veneer stone), auto demolding machine, finished culture stone drying, and so on. In a whole word, from material to finished artificial stone package all full auto.
Some parts are not necessary and can be delete according to the client's needs and budget.
1. The plates are hydraulically or electrically transferred to a position parallel to the production line or to a transfer table.
2. The transfer table is transferred to a position parallel to the production line by rollers and cylinders.
3. The auto unloading machine is driven by electric or hydraulic to realize the upper and lower plates, and then the cylinder controls the gripper to grasp a pallet and transfer it to the next position.
4. Then there is the pallet turning machine. The pallet turning machine is controlled by the rotating cylinder, pressing the pallet with mold and the bricks together to another line, and then leaving the mold and the bricks. , and transport the pallet back.
Specifications
| Name | Model | Specification | Size (mm) | Power (Kw) | Capacity (m2/day) | Weight (Kg) |
| Artificial stone production line | HTX-P-01 | Hydraulic driving;Auto feeding; vibrating and timing feeding | 7000*1000*1800 | 12.7 | 1000-1200 | 2000 |
| Wet Cast Machinery | HTX-P-01A | Full Auto,timing feeding and vibration, weighing system; | 12000*1000*2000 | 9.1 | 800-1000 | 2000 |
Applications
Auto Wet Conrete Dosing System Production line advantages:
1.More efficient production, can achieve 800M2 Per day(8hrs)
2.Labors saving for production, 5-6 workers needed only, can largely reduce the labor cost of factory output.
3.Multiple function for production, it include unloading, painting, concrete dosing and stacking, and available usage for plastic molds of floor tile and terrazzo tile, silicone molds for artificial stone etc.
4. The auto spray painting machine, has function for mold oil sparying, stroll color painting and full color painting, also it can be turned on/off separately.
